INSTRUMENTATION FITTINGS - PIPE FITTINGS MANUFACTURER

PIPE FITTINGS

DESCRIPTION : ACUTE ENGITECH PIPE FITTINGS

Our Pipe Fittings are screwed & socket welded type joints, used for connecting male / female screwed & weldable pipe ends. They are used for achieving high pressure leakproof joints of metal pipes. They are available in various sizes with complete range as Hex / Pipe Nipples, Elbows, Tees, Adaptors & Cross. The parts are machined as per international standards to achieve the high quality.

TYPES : ACUTE ENGITECH PIPE FITTINGS

• 45° Elbow Female
• 45° Elbow Street
• 72° Close Nipple
• Adapter BSPT To NPT
• Adapter NPT To BSPP
• Cross Female
• Elbow Female
• Elbow Reducing Street
• Female To Hose Connector
• Hex Coupling
• Gauge Adapter BSPP To NPT
• Hex Long Nipple
• Hex Nipple

STANDARD SPECIFICATIONS : ACUTE ENGITECH TUBE FITTINGS

• GRADE : Stainless Steel 304, 316, 316 L, Carbon Steel, Monel 400 or Brass
• SIZE : 1/16" to 2"
• THREAD SPECIFICATIONS :
  • NPT ANSI B1.20.1
  • BSPT BS21, ISO 7/1
  • BSPP BS2779, ISO 228/1
  • Socket Weld ANSI B16.11
• MAXIMUM WORKING TEMPERATURE : 100°C

GET IN TOUCH WITH OUR TECHNICAL TEAM FOR FURTHER INFORMATION & ASSISTANCE

45° ELBOW FEMALE

45° ELBOW STREET

72° CLOSE NIPPLE

ADAPTER BSPT TO NPT

ADAPTER NPT TO BSPP

CROSS FEMALE

ELBOW FEMALE

ELBOW REDUCING STREET

FEMALE TO HOSE CONNECTOR

GAUGE ADAPTER BSPP TO NPT

HEX COUPLING

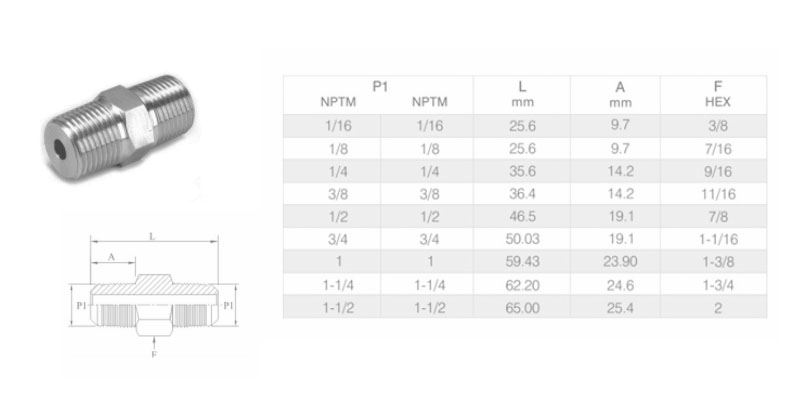

HEX NIPPLE

HEX LONG NIPPLE

SPECIAL FEATURES : ACUTE ENGITECH TUBE FITTINGS

• CAN BE MANUFACTURED AS PER CUSTOMIZED DRAWINGS, TAILOR-MADE AS PER SPECIFIC REQUIREMENT
• SUITABLE FOR HIGH PRESSURE GASES, LIQUIDS & VACUUM DESIGNED FOR EASY HANDLING
• SUITABLE FOR HIGH PRESSURE APPLICATIONS
• HIGH PRESSURE LEAKPROOF JOINTS ARE POSSIBLE WITHOUT USING WELDING, USING ONLY WRENCH OR SPANNERS
• ALSO AVAILABLE 37° FLARE FITTING OPTION



• EACH FITTING IS 100% TESTED.
• 100% MATERIAL TRACEABILITY

OPTIONAL REQUIREMENTS

• NACE MR 0175 SOUR GAS SERVICE
• ADDITIONAL CLEANING, DEGREASING & SPECIAL PACKING FOR OXYGEN SERVICE
• 37° FLARE FITTING VARIANT
• LASER ETCHING – DETAIL ON FITTING
• MATERIAL TEST CERTIFICATE, HYDRO TEST CERTIFCATE
• PLATTING & COATING OPTION
• VIBRATION TEST, TEMPERATURE TEST & HELIUM TEST ARE AVAILABLE ON REQUEST

APPLICATION

Instrumentation & Process Control – Chemical – Oil & Gas – Hydraulics – Power – Steel – Fertilizers – Petrochemical – Pharmaceuticals

• SPECIFICATIONS ARE SUBJECTED TO CHANGE WITHOUT PRIOR NOTICE
• TECHNICAL DATA SHEET & DRAWINGS AVAILABLE ON REQUEST
• GET IN TOUCH WITH OUR TECHNICAL TEAM FOR FURTHER INFORMATION & ASSISTANCE
